Packet Tracer - Implementing a Subnetted
IPv6 Addressing Scheme
Please click here to download topology 9.3.1.4 Packet Tracer - Implementing a Subnetted IPv6 Addressing Scheme Instructions

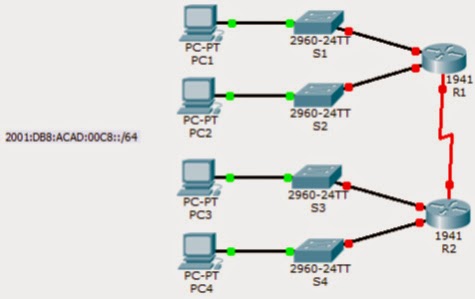

Topology
9.3.1.4 Packet Tracer - Implementing a Subnetted IPv6 Addressing Scheme Instructions |
Addressing Table
Device
|
Interface
|
IPv6 Address
|
Link-Local
|
R1
|
G0/0
|
FE80::1
|
|
G0/1
|
FE80::1
|
||
S0/0/0
|
FE80::1
|
||
R2
|
G0/0
|
FE80::2
|
|
G0/1
|
FE80::2
|
||
S0/0/0
|
FE80::2
|
||
PC1
|
NIC
|
Auto Config
|
|
PC2
|
NIC
|
Auto Config
|
|
PC3
|
NIC
|
Auto Config
|
|
PC4
|
NIC
|
Auto Config
|
Objectives
Part 1: Determine the IPv6 Subnets
and Addressing Scheme
Part 2: Configure the IPv6 Addressing
on Routers and PCs and Verify Connectivity
Scenario
Your network administrator wants you to
assign five /64 IPv6 subnets to the network shown in the topology. Your job is
to determine the IPv6 subnets, assign IPv6 addresses to the routers, and set
the PCs to automatically receive IPv6 addressing. Your final step is to verify
connectivity between IPv6 hosts.
Part 1: Determine the IPv6 Subnets and Addressing Scheme
Step 1:
Determine the number of subnets
needed.
Start with the IPv6 subnet 2001:DB:ACAD:00C8::/64 and assign it to the R1 LAN
attached to GigabitEthernet 0/0, as shown in the Subnet Table. For the rest of the IPv6 subnets, increment the 2001:DB:ACAD:00C8::/64
subnet address by 1 and complete the Subnet
Table with the IPv6 subnet addresses.
Subnet Table
Subnet
Description
|
Subnet Address
|
R1 G0/0 LAN
|
2001:DB:ACAD:00C8::0/64
|
R1 G0/1 LAN
|
|
R2 G0/0 LAN
|
|
R2 G0/1 LAN
|
|
WAN Link
|
Step 2:
Assign IPv6 addressing to the routers.
a.
Assign the first IPv6 addresses
to R1 for the two LAN links and the WAN link.
b.
Assign the first IPv6 addresses
to R2 for the two LANs. Assign the second IPv6 address for the WAN link.
c.
Document the IPv6 addressing
scheme in the Addressing Table.
Part 2: Configure the IPv6 Addressing on Routers and PCs and Verify
Connectivity
Step 1:
Configure the routers with IPv6
addressing.
Note:
This network is already configured with some IPv6
commands that are covered in a later course. At this point in your studies, you
only need to know how to configure IPv6 address on an interface.
Configure R1 and R2 with the IPv6
addresses you specified in the Addressing
Table and activate the interfaces.
Router(config-if)# ipv6 address ipv6-address/prefix
Router(config-if)# ipv6 address ipv6-link-local link-local
Step 2:
Configure the PCs to
automatically receive IPv6 addressing.
Configure the four PCs for autoconfiguration.
Each should then automatically receive full IPv6 addresses from the routers.
Step 3:
Verify connectivity between the
PCs.
Each PC should be able to ping the other
PCs and the routers.
Suggested Scoring Rubric
Activity Section
|
Question Location
|
Possible Points
|
Earned Points
|
Part 1: Determine IPv6 Subnets and
Addressing Scheme
|
Subnet
Table
|
30
|
|
Addressing
Table
|
30
|
||
Part 1 Total
|
60
|
||
Packet Tracer Score
|
40
|
||
Total Score
|
100
|
